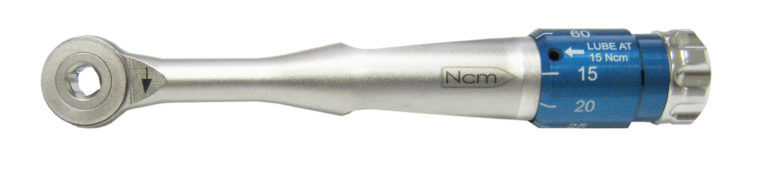

The Fully Adjustable Precision Torque Wrench

The PreciseTM Adjustable Torque Wrench

“100% rated it excellent or good and worthy of trial by colleagues”

Evaluated by an independent non-profit dental education and product testing foundation. Full data is available upon request.

Click here to see ITL DENTAL’s Adjustable Torque Wrench Video

Features

  • CE Mark
  • Autoclavable
  • No Lubrication
  • Ratchet Mechanism

9 Torque Settings

15, 20, 25, 30, 35, 40, 45, 50 and 60 Ncm

  • Torque settings lock into select Location for accuracy and repeatability
  • Ratchet clutch disengages (slips) when torque is applied to avoid over torquing
  • Torque settings are provided for use with all implant designs
  • Wrench head accepts the standard 4mm square connection

Torque Control

The PreciseTM Adjustable Torque Wrench has been designed with 9 distinct torque settings. A simple twist of the handle locks in precision-engineered torque values guaranteeing accuracy and repeatability.

Tightening with the correct torque minimizes the risk of the implant screw working loose and improves precision during bridge fabrication. Exact torque control also reduces the risk for stress being built into the restoration and prevents component fractures.

Ease of Use

Insert the screw or abutment into the implant with the appropriate driver and thumb knob manually and tighten with finger pressure. Make the final seat using the PreciseTM adjustable torque wrench with the recommended torque setting provided by the implant system manufacturer. Pre-load the screw or abutment by using the torque wrench in the same manner as a conventional ratchet wrench. The wrench will slip when the selected torque is applied.

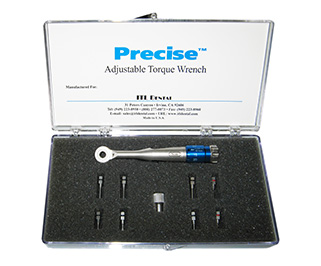

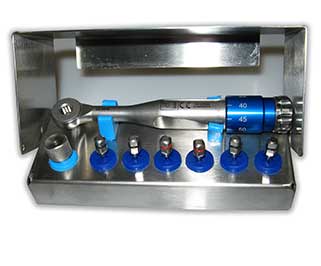

Adjustable Torque Wrench Standard Kit

The standard kit comes with one (1) adjustable torque wrench, one (1) thumb knob and eight (8) drivers: Long (12.5mm shaft) and short (6.5mm shaft) drivers in: .048 Hex, .050 Hex, NobelBiocare Torx and ITI/Straumann Torx. The kit can be customized with up to 12 drivers.

The standard kit can be used for the majority of major implant systems.

All parts are available separately.

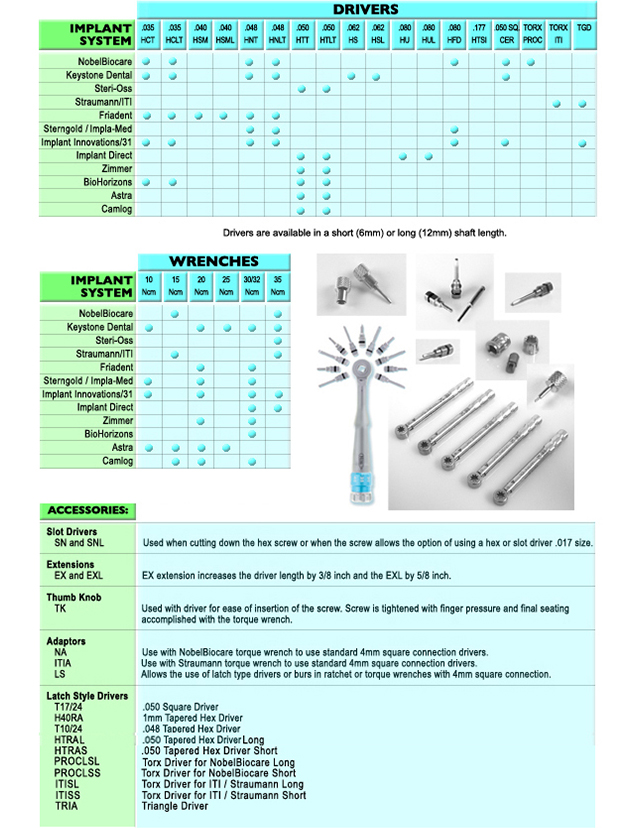

Click here to see photos of Drivers and Adaptors
